T700 vs T300 Carbon, and Why Raw Carbon Grips the Ball

Carbon grade has become a headline specification, and most of what is written about it is wrong in the same specific way. T700 is routinely described as stiffer than T300. It is not. Both are standard modulus fibers with the same stiffness and the same filament diameter.

What actually differs, and what actually produces spin, are two separate things. Here are both.

What the grade numbers mean

T300 and T700 are Toray designations. The T series are standard modulus carbon fibers, and the number is not a scale of quality so much as a product code that happens to correlate with tensile strength.

The meaningful gap is strength. T700 carries roughly 4,900 MPa tensile strength against about 3,530 MPa for T300, so it withstands close to 40 percent more stress before failing. That headroom is real and it is the reason T700 gets specified for performance builds.

The meaningful similarity is stiffness. Both are standard modulus, both have the same filament diameter. Modulus is what governs how much a face flexes under load, and it is essentially unchanged between the two grades. So the common claim that T700 gives you a crisper, stiffer face is not describing the fiber. It is describing what a designer chose to do with the extra strength headroom.

Where spin actually comes from

Spin is generated by friction. The ball needs to grip the face and roll across it rather than slide, and that depends on surface texture and the coefficient of friction, not on which carbon grade sits underneath.

There are two ways to get that texture, and they age completely differently.

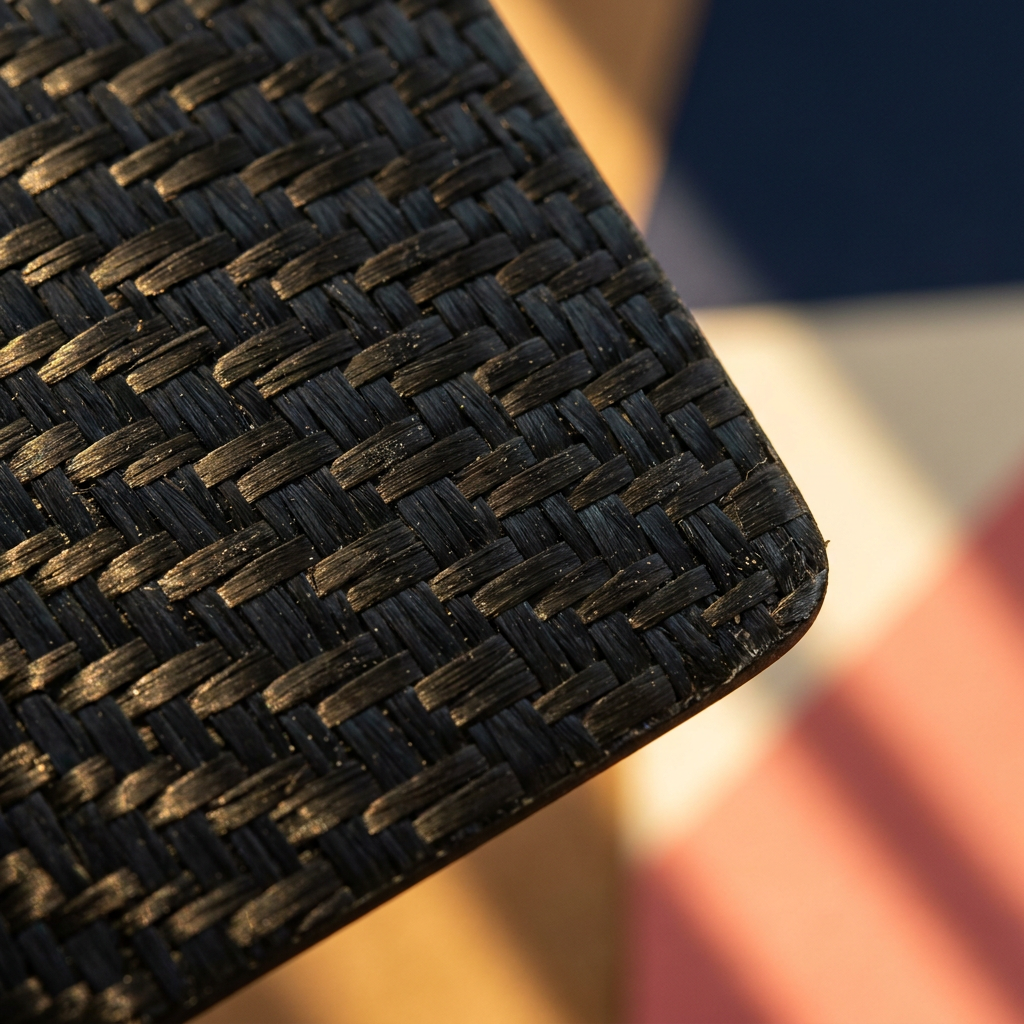

Peel ply texture, also called raw carbon

During layup, a release fabric is placed against the surface before curing. As the resin cures it takes an impression of that fabric, leaving a regular pattern pressed into the resin surface. The release fabric is then peeled away, which is where the name comes from.

The critical point is that this texture is the surface. It is not sitting on top of anything. There is no coating to wear through, so the texture degrades only as the resin itself polishes, which is a much slower process.

Applied grit

The alternative is applying an anti-skid compound, sand or grit particle coating to a painted face. This works, and initially it can produce very high friction.

It also wears. The grit is a layer bonded to the face, and repeated ball contact abrades it away. Faces finished this way commonly lose meaningful spin well inside a year of regular play.

This is the single biggest reason two paddles with identical spec sheets diverge after six months. It is also rarely disclosed, which means asking is worth doing.

How grade and texture interact

There is a small and often misreported wrinkle here. In raw form, T300 has a slightly rougher natural surface than T700, so an untextured T300 face can grip marginally better than an untextured T700 one.

In practice this rarely decides anything, because both grades get textured deliberately to the maximum the rules allow. The natural surface difference is swamped by the intentional texture applied on top of it.

Where T700 pulls ahead is over time. Its higher strength means the face resists the micro-abrasion that gradually polishes texture flat, so it holds its bite and its crispness longer under heavy use. If you play several times a week and hit hard, that difference compounds.

The limits the rules impose

There is a ceiling on spin, which is why no face material can be a magic answer.

USA Pickleball measures surface texture two ways, and most articles collapse them into one number. The limits are 30 micrometres average peak height and 40 micrometres highest peak. Separately, the coefficient of kinetic friction may not exceed 0.1875. Exceed either and the paddle fails approval.

From 1 October 2026, a direct Spin Rate Test applies to newly certified paddles, with a limit of under 2,100 RPM. The protocol clamps the paddle, fires a ball at 40 mph into a 30 degree face angle, and measures outgoing spin with a dual-camera system running around 1,500 frames per second. Until that date, passing the existing roughness and friction tests is enough.

The practical read: every compliant paddle is clustered near the same legal ceiling. What separates them is not peak spin on day one, it is how much of that spin survives to month twelve.

How long texture actually lasts

On a sprayed grit face in regular play, expect noticeable decline inside a year, sometimes considerably sooner.

On a raw carbon peel ply face, most players see spin fall off somewhere between 6 and 12 months of committed play. Independent examination of well-built raw carbon faces has found no measurable texture degradation after several weeks of daily multi-hour use by intermediate players, which suggests the decline is gradual rather than sudden and that build quality moves the timeline substantially.

If lasting texture is the priority above all else, an aramid face outperforms carbon on this specific measure. That comparison is in Kevlar vs carbon fiber vs titanium paddle faces.

What to ask a supplier

Three questions separate a real specification from a brochure.

Is the texture peel ply or applied grit? This predicts how the paddle plays in a year better than any other single question.

What grade, and how many plies? Grade alone is not a spec. Layup is where the performance lives.

What is the certification status and date? Because the standards have tightened, and a paddle certified under an older ceiling is not automatically compliant now.

If a supplier cannot answer those, they are reselling a blank rather than building a paddle. We build across multiple carbon grades and finishing methods, detailed in the construction guide, and you can set face material directly in the paddle designer.

Common questions

Is T700 carbon fiber better than T300?

T700 is significantly stronger, around 4,900 MPa against 3,530 MPa, so it holds texture and crispness longer under heavy play. It is not stiffer, since both are standard modulus fibers with the same modulus and filament diameter. For occasional play the difference is small, for frequent hard hitting it is worth paying for.

Does T700 carbon give more spin than T300?

Not inherently. Spin comes from surface texture, and both grades are textured to the same legal ceiling. T300 is marginally rougher untextured, but that is swamped by the deliberate texture applied on top. T700 holds its texture longer, which means more spin over the life of the paddle rather than more on day one.

What is raw carbon fiber on a paddle?

Raw carbon means the resin surface is left exposed and textured during curing, usually by a peel ply that presses a pattern into it. The texture is part of the surface rather than a coating applied over it, so there is nothing to wear through and it lasts considerably longer than sprayed grit.

How much spin is a pickleball paddle allowed to generate?

Surface roughness is capped at 30 micrometres average peak height and 40 micrometres highest peak, with a maximum coefficient of kinetic friction of 0.1875. From 1 October 2026 newly certified paddles must also measure under 2,100 RPM on a direct spin rate test.

Why did my paddle lose its spin?

The surface texture has worn smooth. On sprayed grit faces the coating abrades away, often within a year. On raw carbon the resin gradually polishes, typically noticeable between 6 and 12 months of committed play. Texture cannot legally be restored, so the paddle needs replacing.
