Why Paddles Die: Delamination, Core Crush and Real Lifespan

Paddles do not usually break. They degrade, and they do it in three distinct ways that get lumped together as "my paddle feels off".

Telling them apart matters. One of them is a manufacturing defect you should be raising with whoever sold you the paddle. One is normal wear. And one makes your paddle illegal for sanctioned play without you necessarily noticing.

Delamination: louder, hotter, and illegal

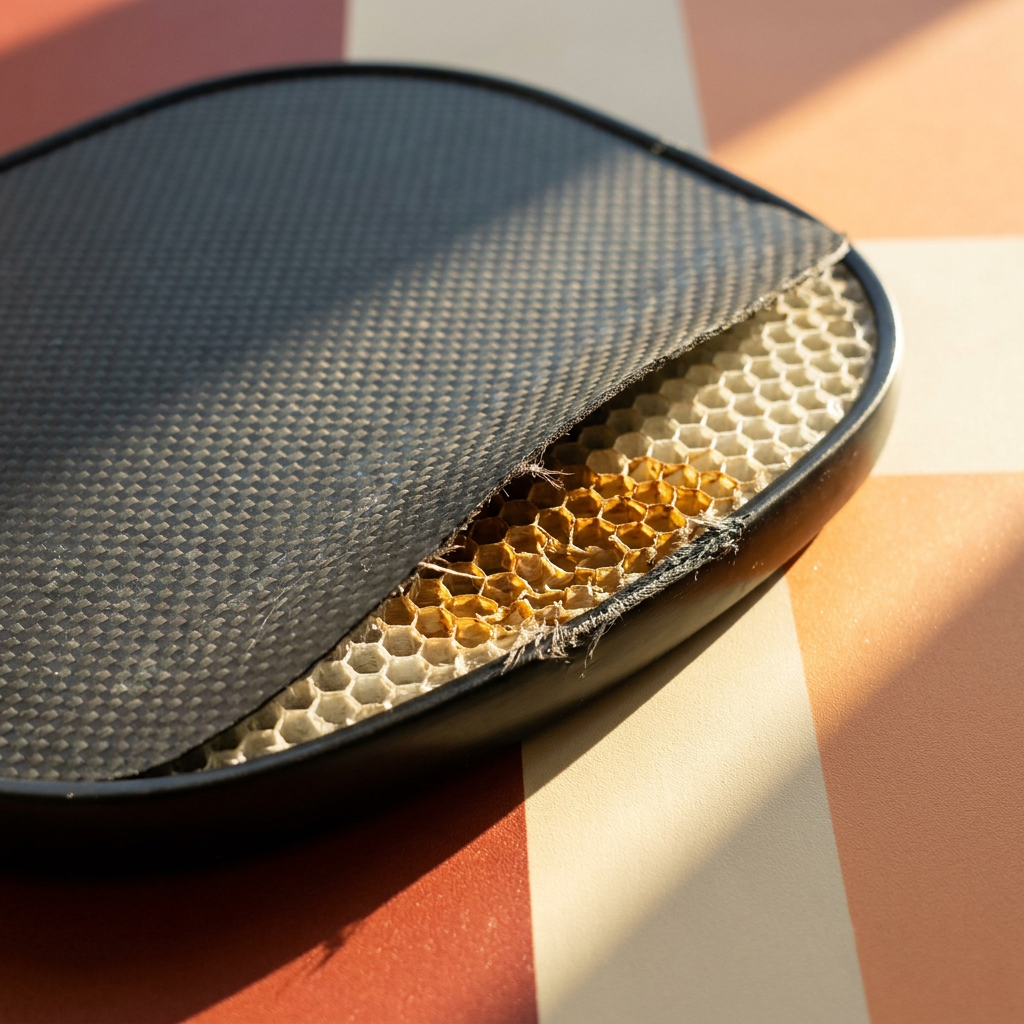

Delamination is a bond failure. The face layer separates from the core and an air gap opens between them.

Counterintuitively, this makes the paddle better before it makes it worse. The unsupported face flexes and springs back like a trampoline, and the ball comes off dramatically faster. Players often describe a paddle that has suddenly become powerful, accompanied by a distinctly louder, hollower pop on contact.

That sound is the diagnostic. A delaminated paddle rings differently from a healthy one, and tapping around the face will often produce an obviously different note over the affected area.

Why it happens

Delamination is a manufacturing problem, not a wear problem. It comes down to adhesion: poor resin systems, ineffective adhesives, or a cure schedule that did not properly bond face to core.

It shows up disproportionately in thermoformed paddles, and there is a straightforward reason. Thermoforming requires extended exposure to high heat, and that heat can degrade the adhesive system it depends on. The construction method that produces the stiffest, most forgiving frame is also the one that stresses the bond hardest. We cover that trade in thermoformed vs cold-pressed paddles.

Why it matters beyond feel

A delaminated paddle exceeds the power limits it was certified against. USA Pickleball caps the trampoline effect through the Paddle-Ball Coefficient of Restitution test, which was set at 0.44 from 1 November 2024 and tightened to 0.43 from 1 November 2025. A paddle that has delaminated is almost certainly over that line.

That makes it illegal for sanctioned play regardless of whether it was legal when you bought it, and it is exactly what the on-site testing programmes now rolling out at tournaments are designed to catch. If your paddle suddenly got hot, it is not broken in. It is broken.

Core crush: quiet and gradual

Core crush is the opposite failure. The cell walls of a honeycomb core collapse under repeated impact, and the core loses its structure.

There is no dramatic symptom. The paddle just gets worse. Specific areas of the face go dead, the ball comes off slower from those spots, and the sweet spot shrinks. Because it happens gradually, most players adapt to it without registering that anything changed, then notice immediately when they pick up a new paddle.

It happens two ways. Poor manufacturing produces a core that was never structurally adequate and fails early. Or it happens as genuine wear, because repeated high-impact contact fatigues any honeycomb structure eventually.

The second kind is not a defect. It is the paddle reaching the end of its life. A full foam core largely designs this failure out, since there are no cell walls to collapse, which is one of the real arguments for foam construction covered in foam core vs honeycomb.

Texture wear: the third one

The most common complaint of all is not a structural failure at all. The face texture polishes smooth, friction drops, and spin goes with it.

Nothing has broken. The paddle still hits the same, it just no longer grips the ball. On sprayed grit faces this can happen inside a year. On raw carbon it typically becomes noticeable between 6 and 12 months of committed play. Aramid faces hold on considerably longer.

There is no legal fix. Roughening a face after certification voids its approval. More on how texture is created and why it lasts in T700 vs T300 and why raw carbon grips the ball.

Telling them apart

How long should a paddle actually last

The honest range for a player in regular competitive use is 6 to 12 months before performance decline becomes noticeable. That is the point at which texture has usually gone and the core has taken meaningful fatigue.

Players at the top of the sport replace far more often, commonly every 50 to 100 hours of play, because they are chasing consistency rather than serviceability.

Recreational play is a completely different picture. A paddle used once or twice a week casually can stay perfectly good for years, because the failure modes above are all driven by impact count and impact energy.

What this means when you are ordering

Everything above is decided at build time, not at purchase time.

Delamination risk is a function of resin system and cure control. Core crush resistance is a function of core material and density. Texture life is a function of whether the surface is peel ply or sprayed grit. None of these appear on a typical product listing, and all three determine whether your order is still good in a year.

This is the difference between a supplier who prints on a blank and one who specifies a build. If you are ordering paddles that people are actually going to play with, particularly for a club programme or a brand you are putting your name on, these are the questions worth asking before you commit.

If you are building your own line, we go through this in more depth on the private label side, including what to check before a production run rather than after it.

Common questions

How do I know if my pickleball paddle is delaminated?

The paddle suddenly plays hotter, with more power than it had, and makes a louder, hollower pop on contact. Tapping around the face with a knuckle will often reveal a clear change in note over the affected area. Increased power without any change to your swing is the strongest signal.

Is a delaminated paddle illegal?

In sanctioned play, effectively yes. Delamination creates a trampoline effect that pushes the paddle past the certified power limit, which is 0.43 PBCoR as of 1 November 2025. On-site testing at tournaments is designed to catch exactly this.

What is core crush in a pickleball paddle?

Core crush is the collapse of the honeycomb cell walls inside the paddle under repeated impact. It produces dead spots where the ball comes off slower, shrinks the sweet spot and dulls the sound. Unlike delamination it reduces performance rather than increasing it, and it develops gradually.

How long do pickleball paddles last?

For regular competitive play, 6 to 12 months before noticeable decline. Professional players often replace every 50 to 100 hours. Casual recreational players can get years from a paddle, since all the main failure modes are driven by impact count and impact energy.

Can a delaminated paddle be repaired?

Not reliably, and not legally for sanctioned play. Re-bonding a separated face does not restore the original certified structure, and any modification after certification voids approval. A delaminated paddle should be replaced, and if it failed early it is worth raising with whoever supplied it.

A delaminated paddle breaches the power limit it was certified against. For what those limits are and who sets them, see paddle certification costs and standards.
